Thin Blade Slitter Scorer

Slitting Cutting and Creasing Machine

Thin Blade Slitter Scorer

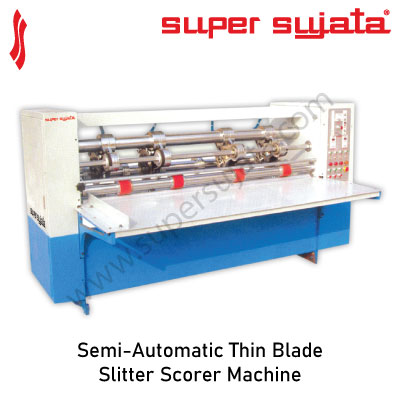

Super Sujata - Thin Blade Slitter Scorer
  • Thin Blade Cutting machine gives sharp cutting of boards. (Thickness of blade is only 1.0 mm)
  • Automatic & Online Sharpening of knife with grinding wheels installed on the machine to keep edge of knife sharp always, while working on the machine.
  • Sturdy design & faster production.
  • Machine is supplied with Variable speed drive motor and controller.

Technical Specifications of
'SuperSujata' Brand Thin Blade Slitter Scorer

Description

Max. Speed

Min Cutting Width

Min. Creasing Width

Power

Weight

Floor Space

2000 mm

140 m/min.

200 mm

200 mm

5 H.P.

2500 kgs.

9'x4'

2500 mm

140 m/min.

200 mm

200 mm

5 H.P.

3000 kgs.

10' x 4'
