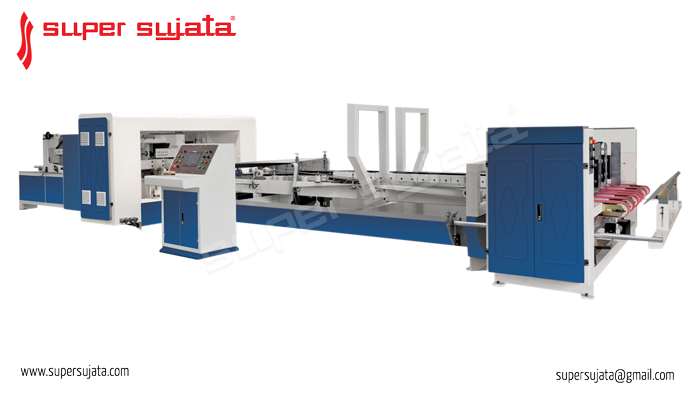

The automatic gluer and stitcher machine is composed of four parts: vacuum paper feeding part, gluing& folding part, stitching part and counting stacking output part. Digital display control, PLC computer amplitude modulation, double frequency synchronous operation, with simple, fast, reliable and accurate control mode. Automatic paper feeding, automatic glue folding, automatic stitching, automatic counting, automatic stacking output, average gluing speed 140 m/min, average stitching speed 50-60 pieces/min. High-speed energy saving, saving labor cost.
| Model and Parameter | 2800 |
| Max Size (A+B)*2 | 2600mm (gluer) 2800mm (stitching) |
| Min Size (A+B)*2 | 780mm |
| Max Size (C+D+C) | 1100mm min size(C+D+C) 340mm |
| Min Flap C | 65mm max flap C 320mm |
| Max Width B | 620MM |
| Min Width B | 160mm (stitching) 80mm (gluer) |
| Max Length A | 830mm |
| Min Length A | 200mm (stitching) 130mm (gluer) |
| Max Height D | 650mm |
| Min Height D | 200mm (stitching) 100mm (gluer) |
